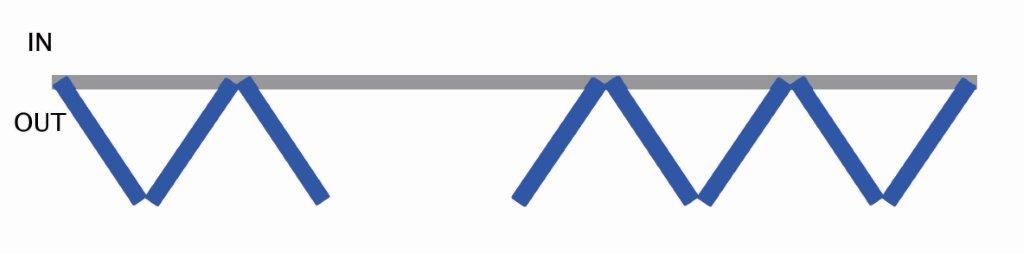

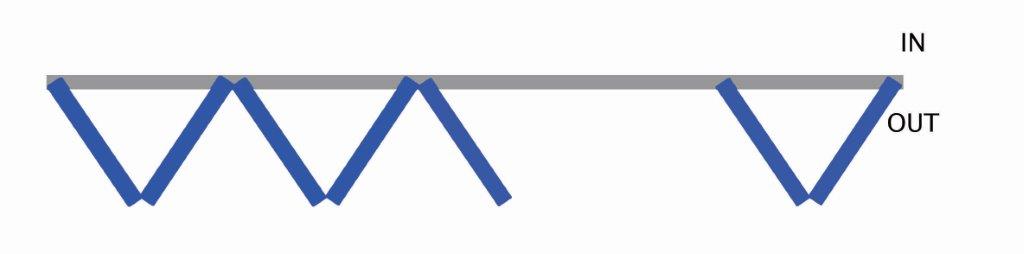

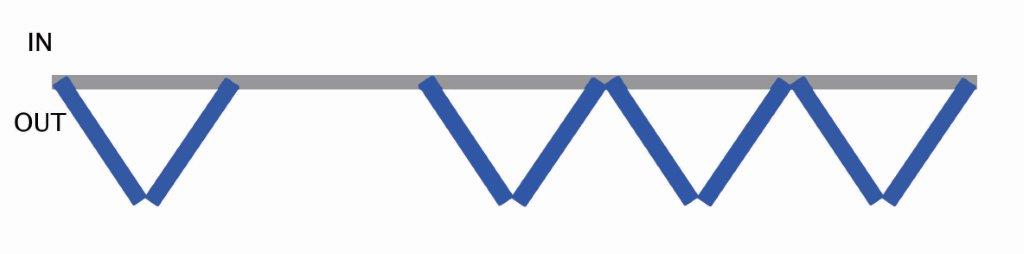

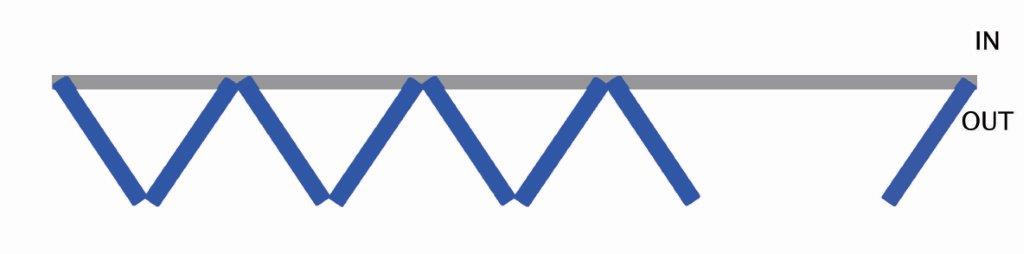

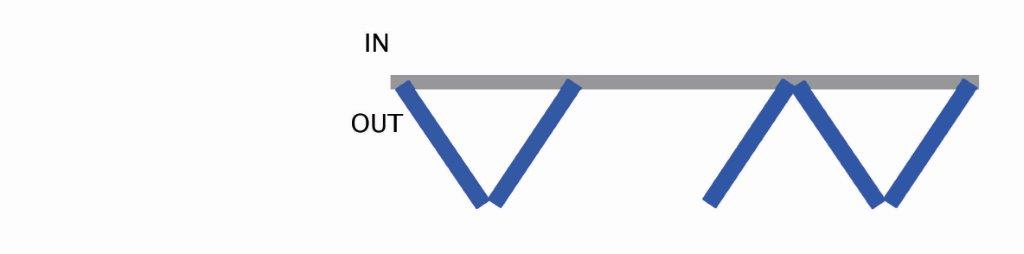

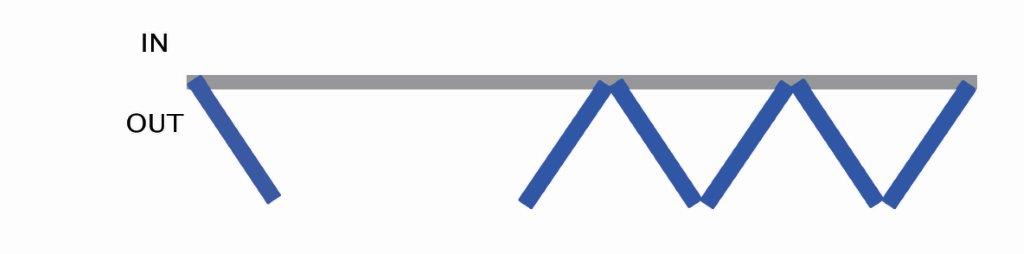

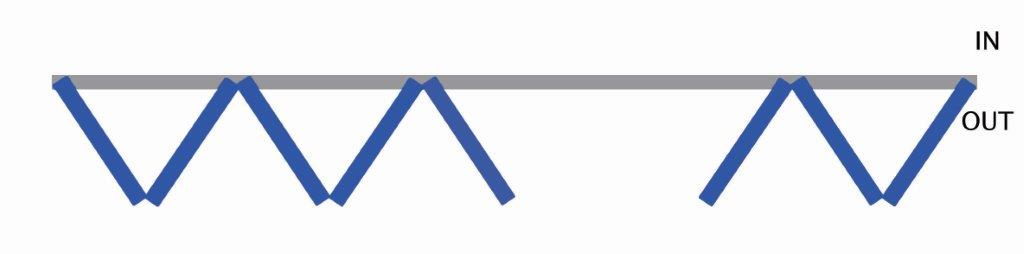

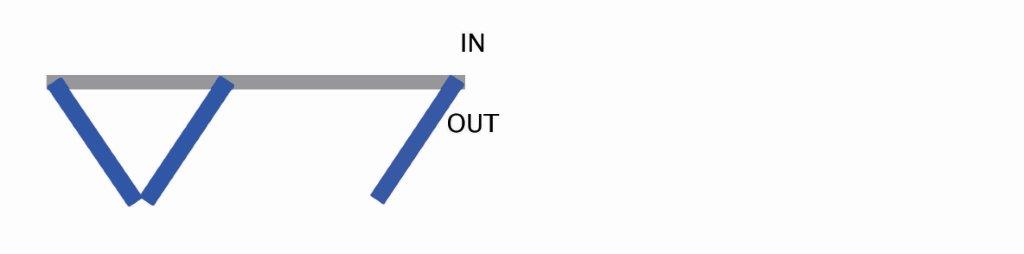

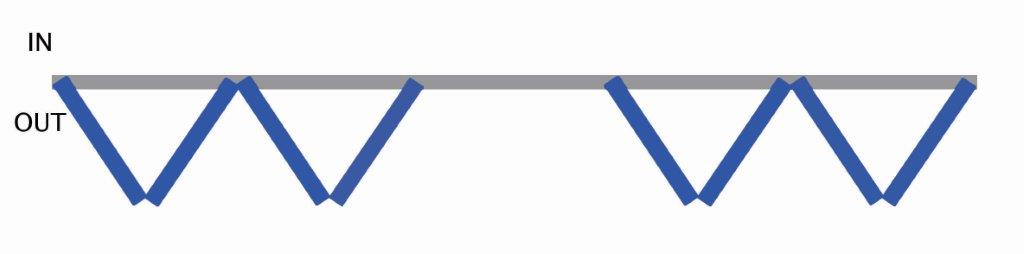

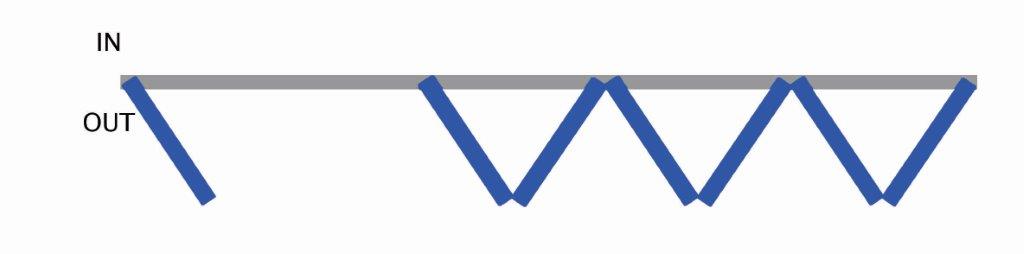

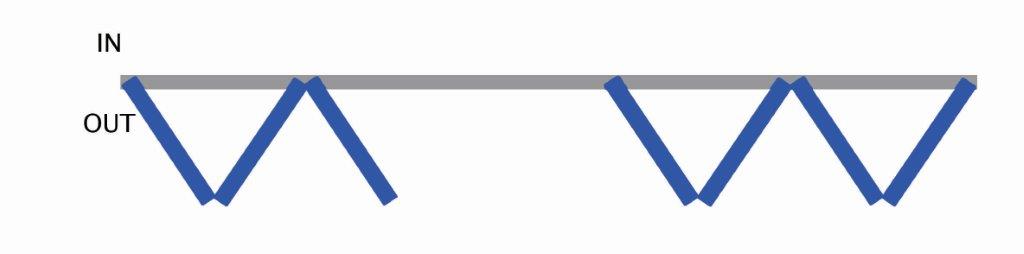

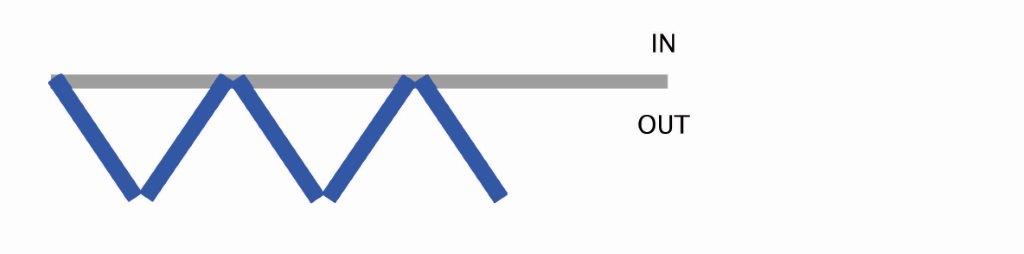

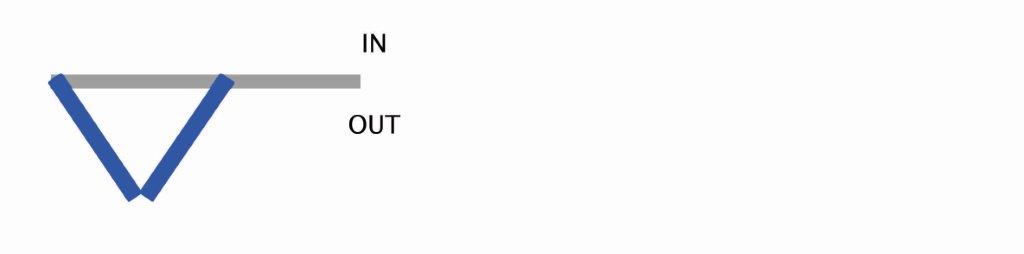

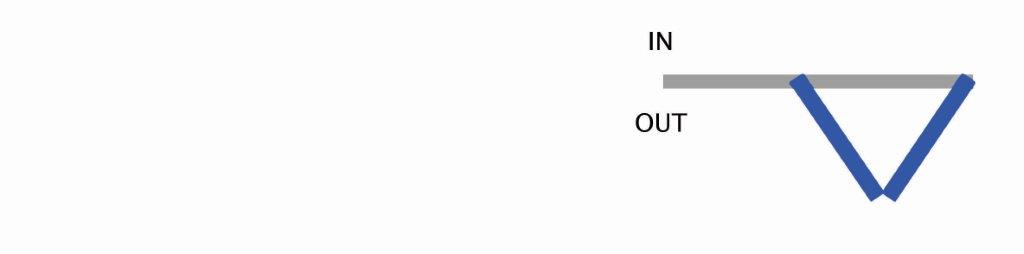

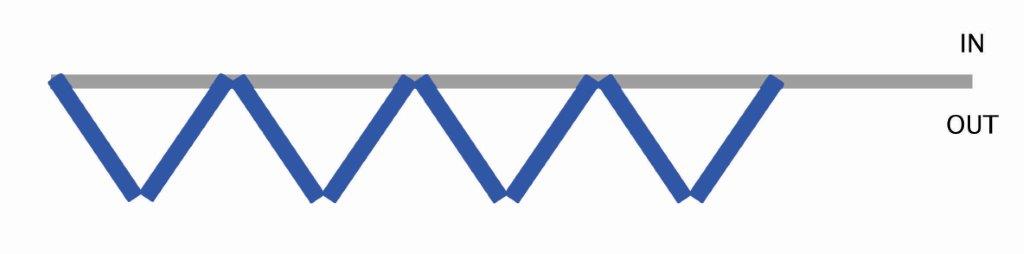

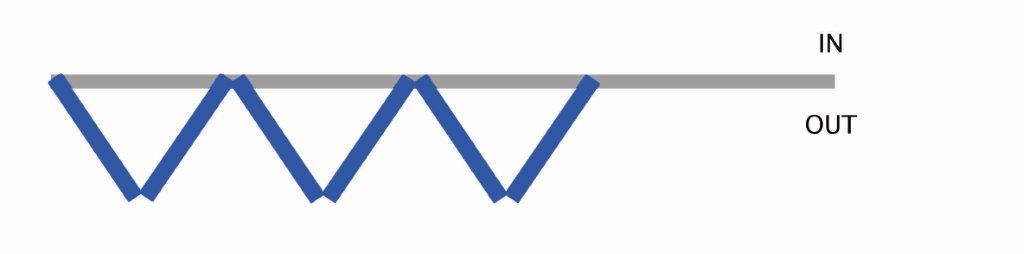

Folding Sliding Door Configurations

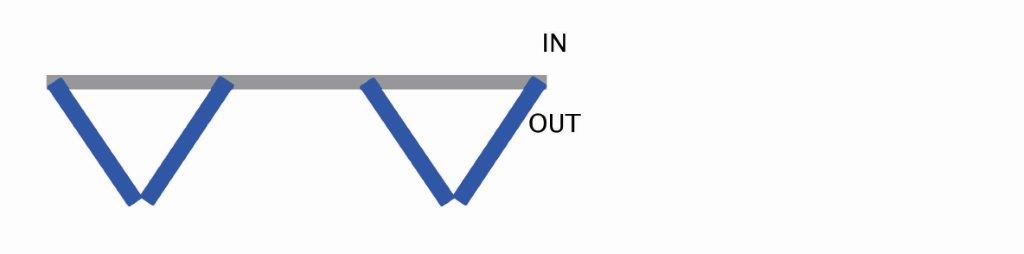

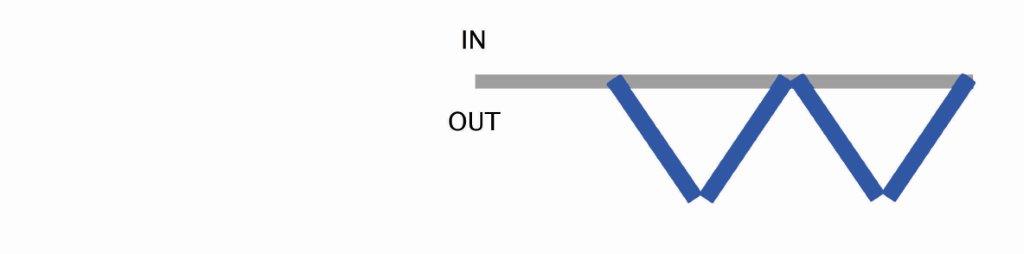

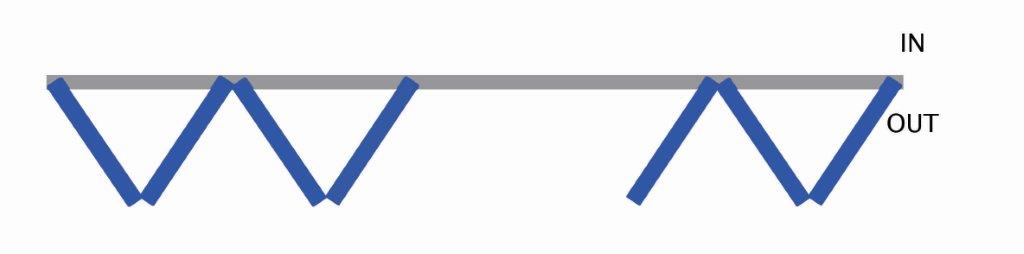

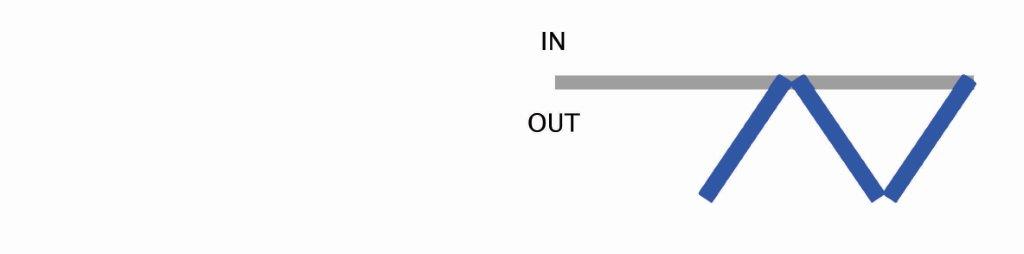

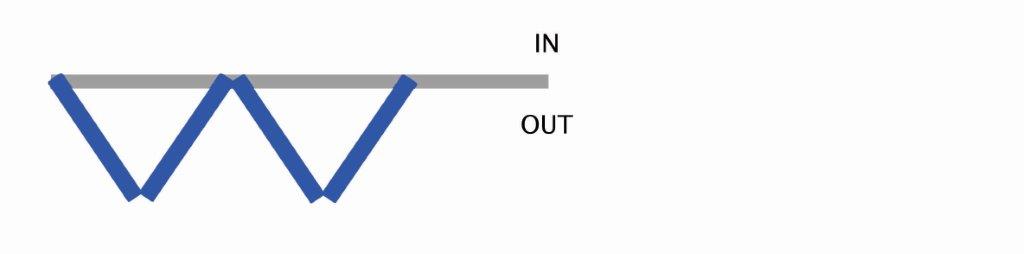

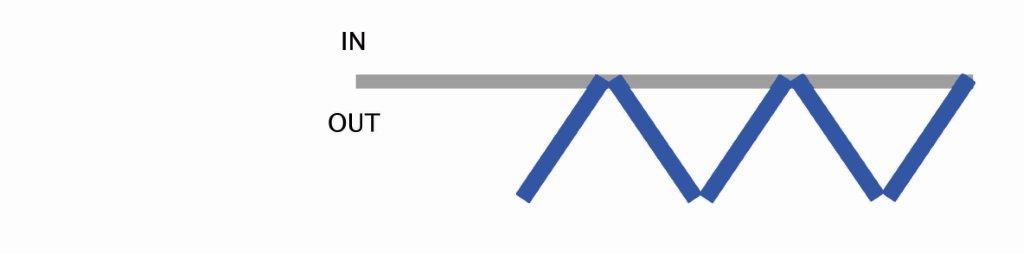

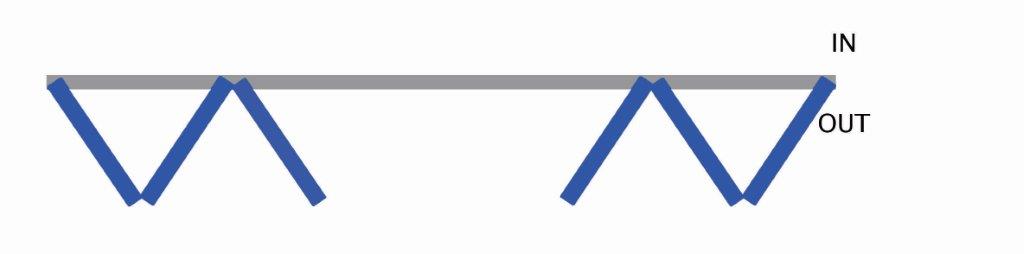

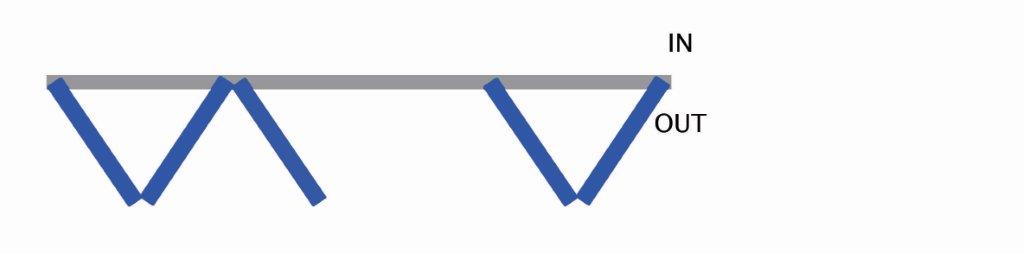

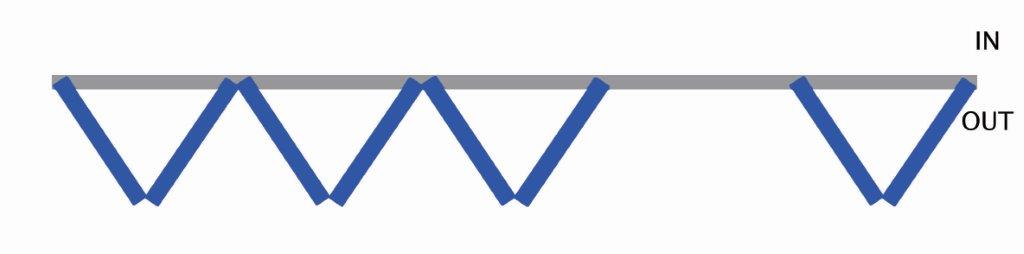

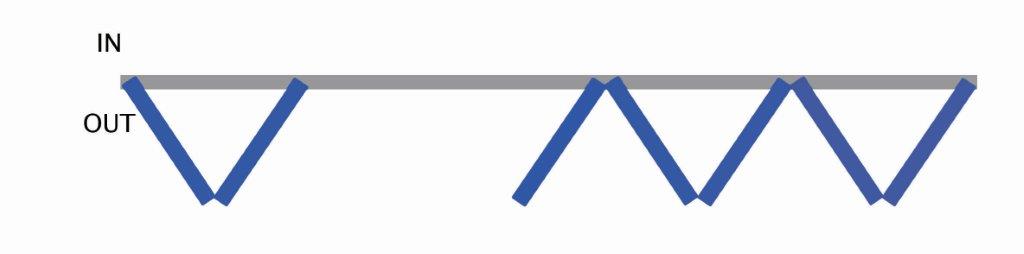

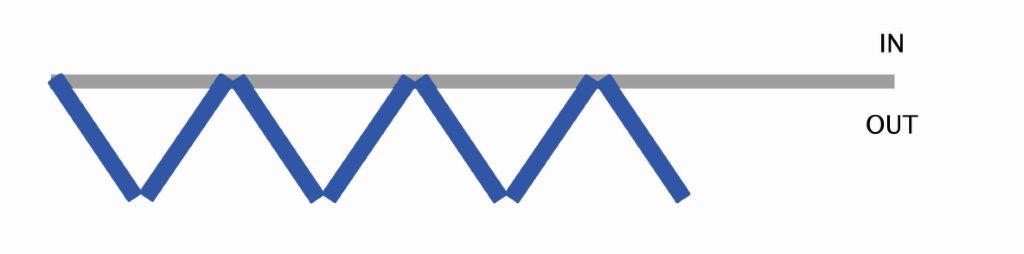

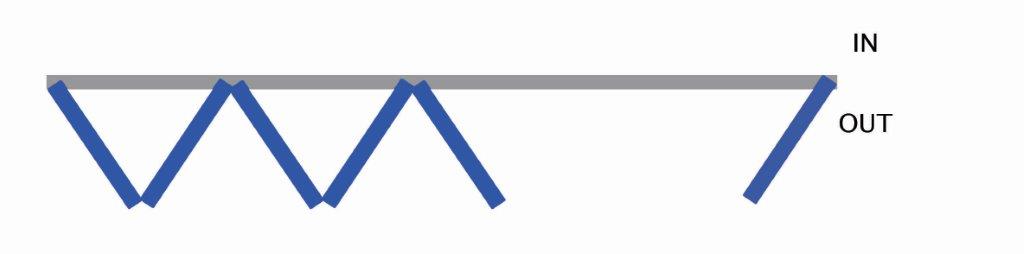

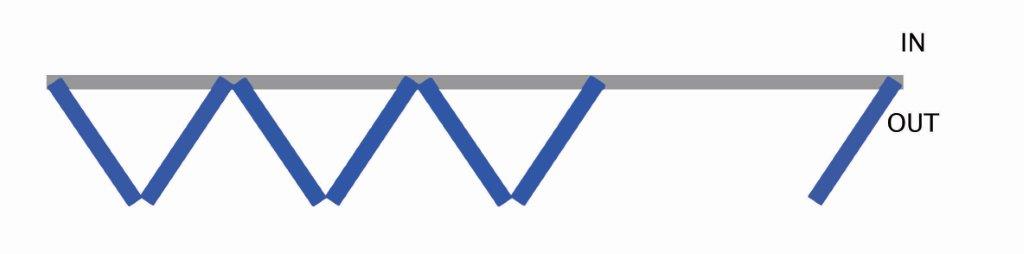

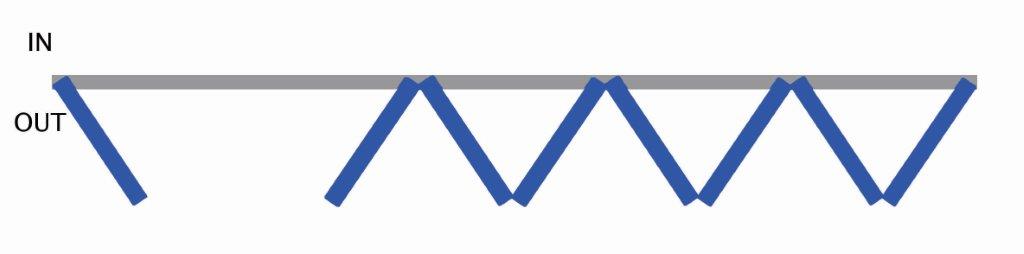

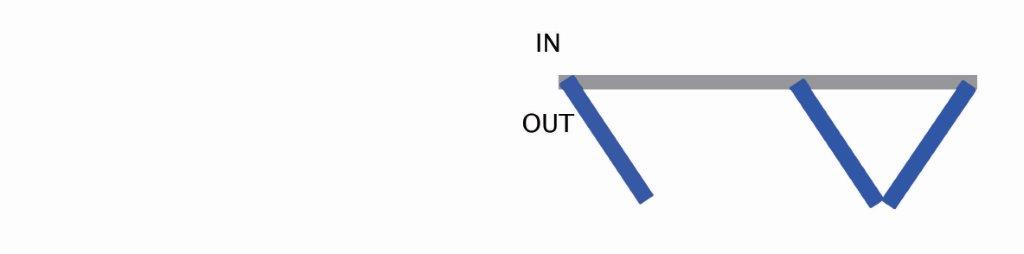

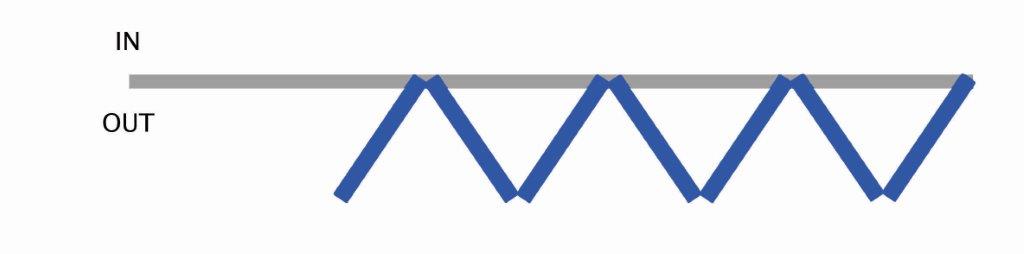

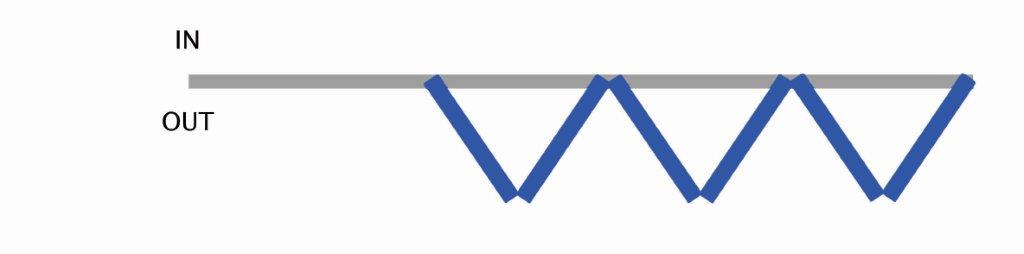

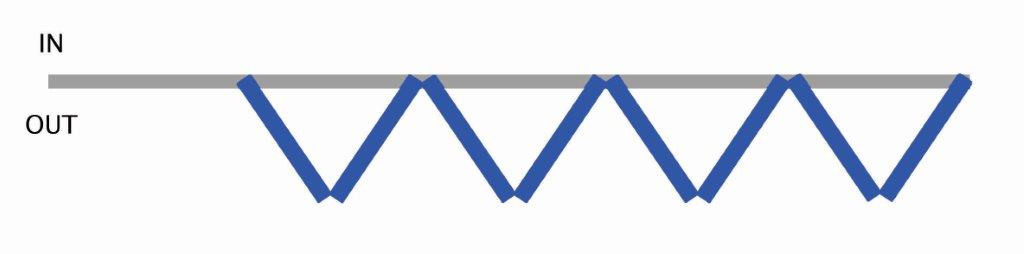

Here you can see the different types of opening configurations for our folding sliding doors. Note that with odd number doors (eg 3 doors folding right) your first door becomes an entrance/exit door without having to unlock the other two. However with an even number of doors (eg 4 doors right or 2 left 2 right) you must unlock two door panels before you can exit the building and as such is unsuitable as your only means of access to your home.
Folding sliding doors using the E3 hinge system will have a maximum width of 850mm and a maximum height of 2600mm. Please call us if you MUST go above these sizes as we can discuss the more expensive E4 hinge option.
Folding sliding doors can be made as room dividers using single glazed glass or panels for complete screening. Please call for further details.
All configuragtions show outward opening doors but inward opening configurations are also available.
Should you be unsure as to the best configuration or simply for further advice please call us on 01353 882202.
